Antenna 13mt in L/S band with 5-ports Feed, Az/El Motorization S/S, De-icing S/S and accessories
New 13m L/S band antenna equipped with 5-port Feed for third generation EUMETSAT services, built in 2011 and installed at the Usingen teleport (Germany), then subsequently relocated by the Antech Space installation team in 2018 at the Fucino teleport (Italy) on behalf of Telespazio.
- Diameter: 13mt
- Customer: EUMETSAT/BUCET
Site: Usingen (Germany)
Frequency range:
Tx S band: 2.025 – 2.120 GHz
Rx S band: 2.200 – 2.300 GHz
Rx L band: 1.600 – 1.700 GHz
Configuration: Cassegrein
Satellite: MSG series and MTG series
Refurbishment of No. 2 - 13mt Antenna Ant18&Ant19 with New L/S band 5-ports Feed
During 2022, the Antech Space team produced, on behalf of Telespazio/EUMETSAT, the new 5-ports L/S band feed to upgrade EUMETSAT’s 13m antennas (Ant18&Ant19) at the Cheia site (Romania), the Antennas will now have a wider S-band frequency band and guarantee inter-band isolation rates above 120dB. Eventually the two antenna systems became equivalent to the Ant20 antenna located at the Fucino teleport.
- Diameter: 13mt
- Customer: TELESPAZIO/EUMETSAT
Site: Cheia (Romania)
Frequency range:
Tx S band: 2.025 – 2.120 GHz
Rx S band: 2.200 – 2.300 GHz
Rx L band: 1.600 – 1.700 GHz
Configuration: Cassegrein
Satellite: MTG and MSG series
New ARMASAT Hub Antenna with 7mt dish in Ku band with 4-ports Feed
In 2007, the Antech Space team created the hub antenna of the ARMASAT network (7.5mt Ku band with 4-ports Feed) which acts as the star center of the network of over 4000 remote stations located throughout Italy.
- Diameter: 7mt
- Customer: Leonardo/Ministry of Defense
Site: Vigna di Valle Roma (Italy)
Frequency range:
Tx Ku band: 13.75 – 14.75 GHz
Rx Ku band: 10.70 – 12.75 GHz
Configuration: Cassegrein
Satellite: E33, AM44, etc.
Refurbishment of CosmoSKYMed Antenna in X band with New Monopulse ACUs
In 2021 the Antech Space team completed and built its new ACU with monopulse capabilities, based on realtime HW using FPGA processors. These devices have been installed on the CosmoSKYMed antennas in the Italian territory of Matera and Pratica di Mare.
- Diameter: 6mt
- Customer: TELESPAZIO/ASI
Site: Matera and Pratica di Mare (Italy)
Frequency range:
Rx X band: 7.9 – 8.4 GHz
Configuration: Cassegrain
Satellite: CosmoSKYMed, etc.
Refurbishment of No. 2 – 32mt C band Antenna system (Cheia1&Cheia2) with new Monopulse Feed, Monopulse ACU and Servo S/S for new Radio telescope services
In 2020 the Antech Space project team was involved by RARTEL in the ESA project of a bi-static radar; we have been entrusted with the refurbishment of the APS – Antenna Pointing Systems system of the two 32m antennas in Cheia (Romania) including: ACU, Servo S/S and the new C-band Tracking Coupler for tracking space objects and radio stars.
- Diameter: 32mt
- Customer: RARTEL/ESA
Site: Cheia (Romania)
Frequency range:
Tx C band: 5.8 – 6.4 GHz
Rx C band: 3.4 – 3.2 GHz
Configuration: Cassegrein
Satellite: Radio stars and Radio object
New 7.5mt Antenna system in Ku band with 4-ports Feed
In 2017, the Antech Space team built a new 7.5m Ku-band antenna on behalf of Telespazio at the Lario teleport (Italy), complete with a de-icing system; which serves as the transmitting station for SKY Germany television services.
- Diameter: 7.5mt
- Customer: Telespazio/Sky Doutchland
Site: Lario Teleport (Italy)
Frequency range:
Tx Ku band: 13.75 – 14.75 GHz
Rx Ku band: 10.70 – 12.75 GHz
Configuration: Cassegrain
Satellite: Hotbird, E33, etc.
New No. 4 - 7mt Antenna system in Ku band with 4-ports Feed
Between 2007 and 2017, the Antech Space team built, on behalf of Telespazio, No. 4 new 7mt antennas in Ku band and K band (up to 18GHz), complete with de-icing system; for all Tx/Rx television services at the SKY Italia headquarters in Milano Santa Giulia.
- Diameter: 7mt
- Customer: Telespazio/Sky Italia
Site: Milano (Italy)
Frequency range:
Tx Ku band: 13.75 – 14.75 GHz
Rx Ku band: 10.70 – 12.75 GHz
Configuration: Cassegrain
Satellite: Hotbird, E33, etc.
Refurbishment of TLR-3 Antenna in X band with New Monopulse Feed, Monopulse ACU and TILT S/S
Between 2012 and 2014, the Antech Space team carried out, on behalf of eGEOS, a profound refurbishment work of the TLR-3 antenna system at the Matera site. The antenna for eGEOS’ own services has been upgraded with a new Feed X band, with a monopulse tracking coupler, the new monopulse ACU and also all the refurbishment of the TILT system (the 3rd movement axis) of the antennas for LEO applications.
- Diameter: 10mt
- Customer: eGEOS
Site: Matera (Italy)
Frequency range:
Rx X band: 7.9 – 8.4 GHz
Configuration: Cassegrain
Satellite: CosmoSKYMed, Sicral, etc.

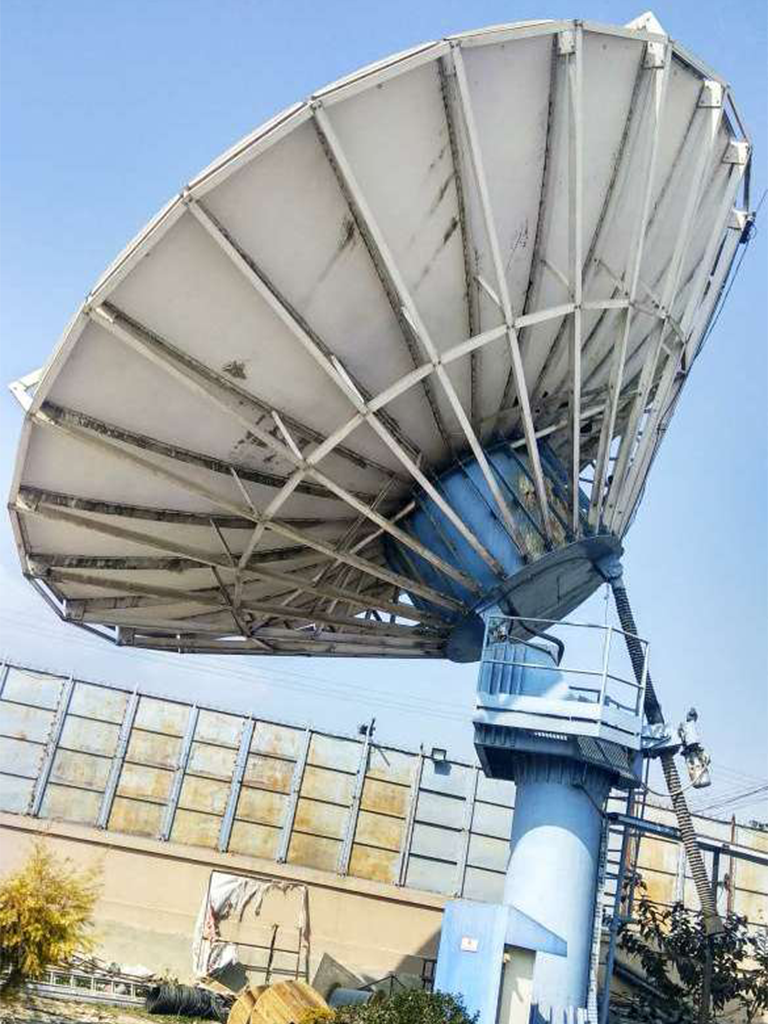

New 9mt Antenna in Ku band with 4-ports Feed
Between 2009 and 2014, the Antech Space team created, on behalf of Dish Media Network (Nepal), a new 9mt Ku-band antenna for all Tx/Rx pay-TV services of the nepalese digital broadcaster, complete with 4-port Feed and TLT system. On 25 April 2015, the antenna also withstood a very violent earthquake (almost 8 degrees of magnitude) that struck the city of Kathmandu.
- Diameter: 9mt
- Customer: Dish Media Network
Site: Kathmandu (Nepal)
Frequency range:
Tx Ku band: 13.75 – 14.75 GHz
Rx Ku band: 10.70 – 12.75 GHz
Configuration: Cassegrain
Satellite: ABS satellite, etc.

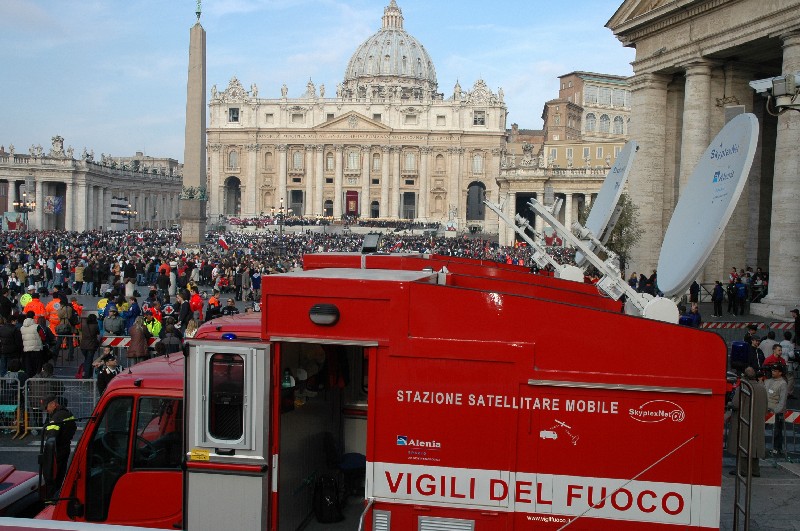

Mobile Vehicle coachwork with 1.5mt in Ku band with 2-ports Feed, ACU, Modem and accessories
Between 2006 and 2013, the Antech Space team built and equipped special satellite vehicles for Italian government agencies equipped with a 1.5m Ku-band antenna and an auto-pointing system, including:
- Diameter: 1.5mt
- Customer: Government Agency
Site: Roma (Italy)
Frequency range:
Tx Ku band: 13.75 – 14.75 GHz
Rx Ku band: 10.70 – 12.75 GHz
Configuration: Dual reflector Off-set
Satellite: E33, AM44, etc.
Refurbishment of a 12mt AF Antenna with New Ka band monopulse Feed, Monopulse ACU and Digital Tracking Receiver
During 2022 the Antech Space team designed and built, on behalf of VTT (Finland) and ESA/ESRIN, the new 2-port feed (RHCP/LHCP) in Ka band, with monopulse tracking coupler to upgrade the 12mt antenna at the ESRIN site in Frascati (Italy). The antenna now provides new functionality up to 27 GHz; the upgrade also involved the installation of the new ACU – Antenna Control Unit and the new DTR – Digital Tracking Receiver which added monopulse capabilities to the ground station for EDRS satellites.
- Diameter: 12mt
- Customer: VTT Finland/ESA-ESRIN
Site: Frascati (Italy)
Frequency range:
Rx Ka band: 25.50 – 27.00 GHz
Configuration: Cassegrein
Satellite: EDRS-A, EDRS-C, AlphaSat, etc.
